Hlorogen H4000

hlorogen_mali150Hlorogen is device for electrolytic production of chlorine in the form of sodium hypochlorite (NaOCl) solution.
Capacity is 4 kg/h or 96 kg/day of equivalent chlorine.

Since no gaseous chlorine is present, water chlorination is absolutely safe due to system design. For production of sodium hypochlorite solution all that is needed is  common salt,  softened  water and electric energy. Production expenses are up to two times lower compared  to gaseous chlorine disinfection, or commercial sodium hypochlorite.

System is easy to use, demands only minimal maintenance and it is fully automated. Exploitation period is minimum 20 years.

Characteristics of the system

Hlorogen H2000 – Characteristics of the system

Four E1000 electrolyzers capacity to produce 4000g/h, 96.0 kg/day is sufficient to disinfect the water with flow of 2222 l/s in order to maintain the 0.5 mg/l residual prescribed by law.

Maximum water flow that can be disinfected with Hlorogen H2000, depending on chlorine needs and desired residuals

Chlorine need (mg/l)

Desired chlorine residual (mg/l)

Chlorine consumption (g/min)

NaOCl consumption (ml/min)

Chlorine consumption (g/h)

NaOCl consumption (l/h)

Maximal water flow (l/s)

0

0,3

66,67

6667

4000

400

3704

0

0,4

66,67

6667

4000

400

2778

0

0,5

66,67

6667

4000

400

2222

0,1

0,5

66,67

6667

4000

400

1852

0,2

0,5

66,62

6662

3996

399,6

1586

0,3

0,5

66,62

6662

3996

399,6

1388

0,4

0,5

66,64

6664

3998

399,8

1234

0,5

0,5

66,6

6660

3996

399,6

1110

0,6

0,5

66,67

6667

4000

400

1010

0,7

0,5

66,67

6667

4000

400

926

0,8

0,5

66,62

6662

3996

399,6

854

0,9

0,5

66,52

6652

3992

399,2

792

1

0,5

66,6

6660

3996

399,6

740

1,2

0,5

66,5

6650

3990

399

652

1,4

0,5

66,58

6658

3994

399,4

584

1,6

0,5

66,52

6652

3992

399,2

528

1,8

0,5

66,52

6652

3992

399,2

482

2

0,5

66,6

6660

3996

399,6

444

2,2

0,5

66,58

6658

3995

399,5

411

2,4

0,5

66,64

6664

3999

399,9

383

2,6

0,5

66,58

6658

3996

399,6

358

2,8

0,5

66,52

6652

3992

399,2

336

3

0,5

66,57

6657

3994

399,4

317

3,5

0,5

66,48

6648

3988

398,8

277

4

0,5

66,42

6642

3985

398,5

246

4,5

0,5

66,6

6660

3996

399,6

222

5

0,5

66,67

6667

4000

400

202





Techical Data

HLOROGEN  H4000 – TECHNICAL DATA

Capacity of equivalent chlorine (kg/h):

4

Saturated brine solution flow 30%(l/h):

40

Softened water flow (l/h):

360

Electrolyte flow (l/h):

400

Salt consumption (kg/h):

12

Power consumption (W):

24000

Voltage (~V; 50Hz):

170 – 250

NaOCl solution strength (%):

0,9 – 1

Electrolyzer E1000 (pcs):

4

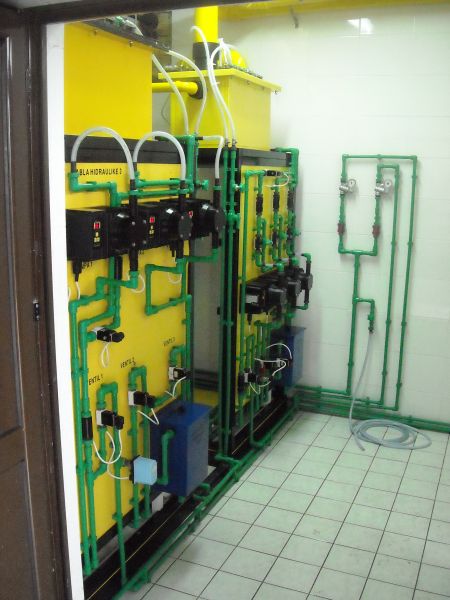

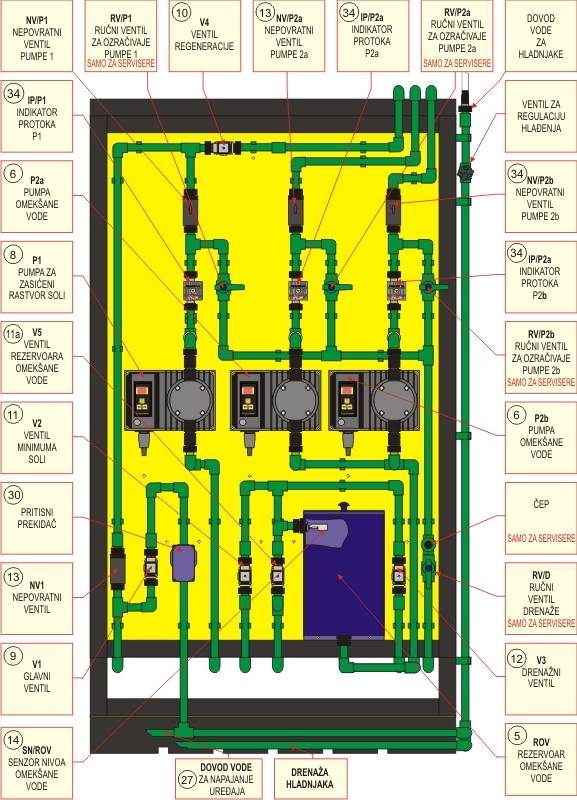

Hydraulic board with stand (pcs):

4

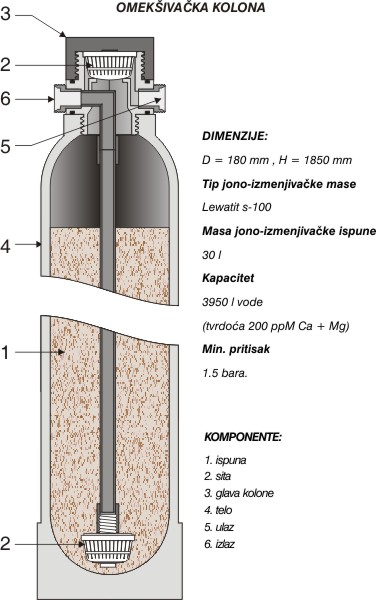

Water softener K180/30 (pcs):

4

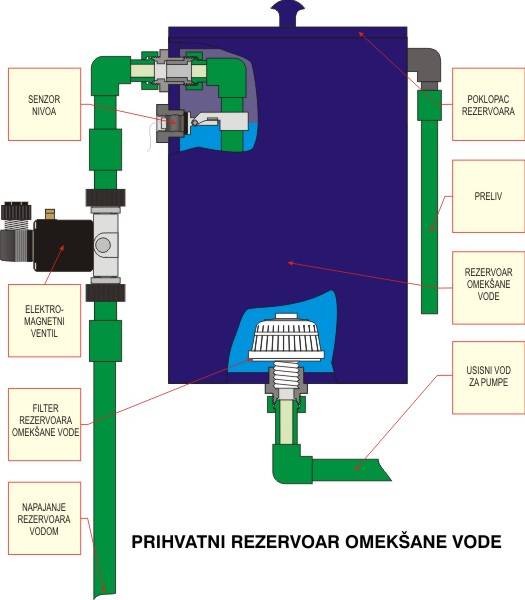

Softened water tank ROMH500/1000(pcs):

4

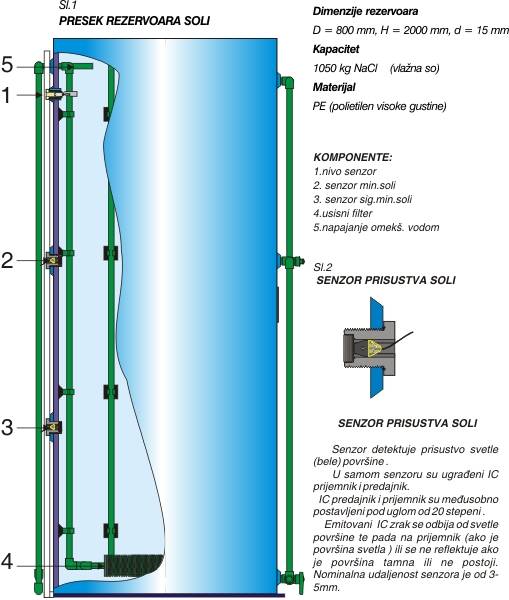

Saturator RSH500/1000(pcs):

2

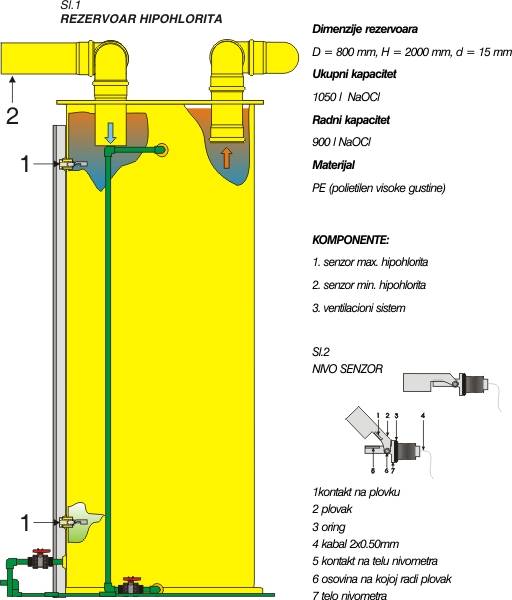

NaOCl tank RNHH500/1000(pcs):

2

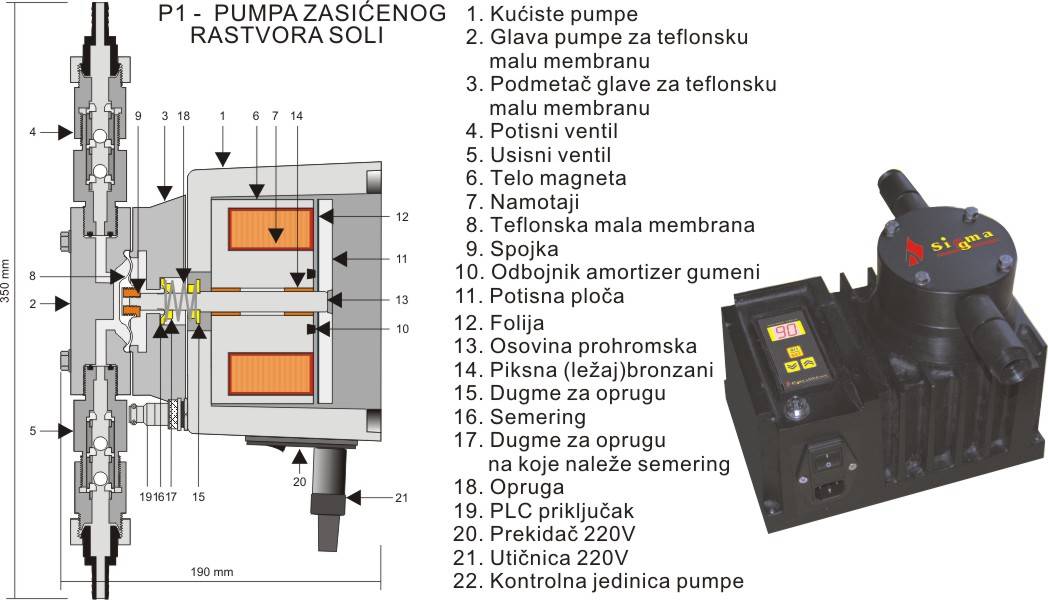

Brine pump Sigma Classic MTM (pcs):

4

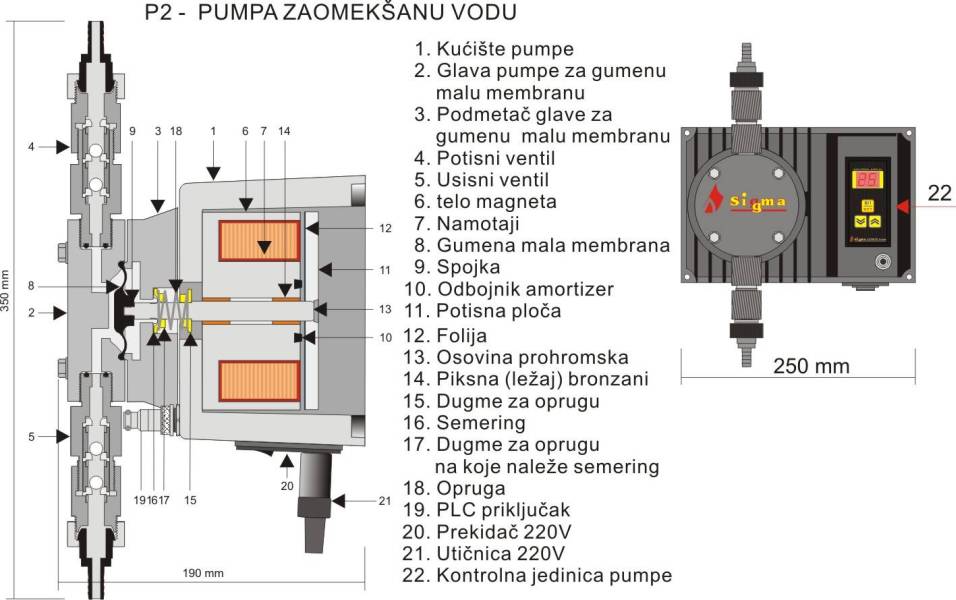

Softened water pump Sigma Classic MGM (pcs):

8

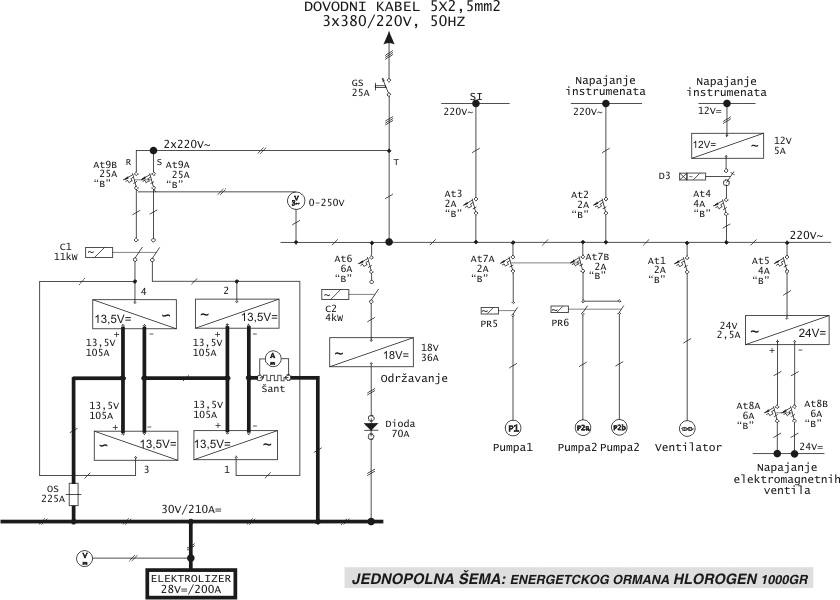

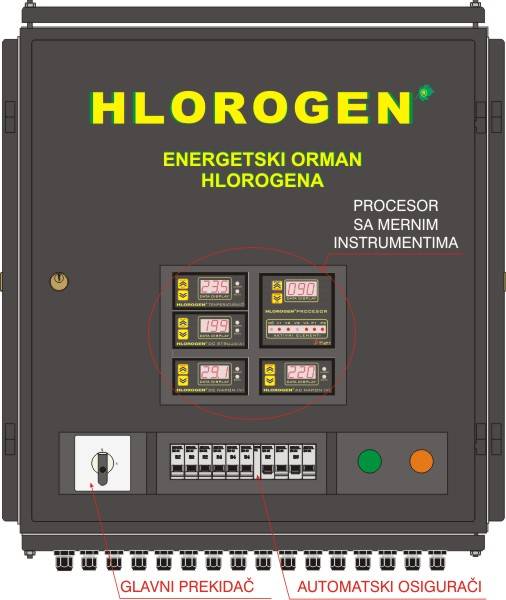

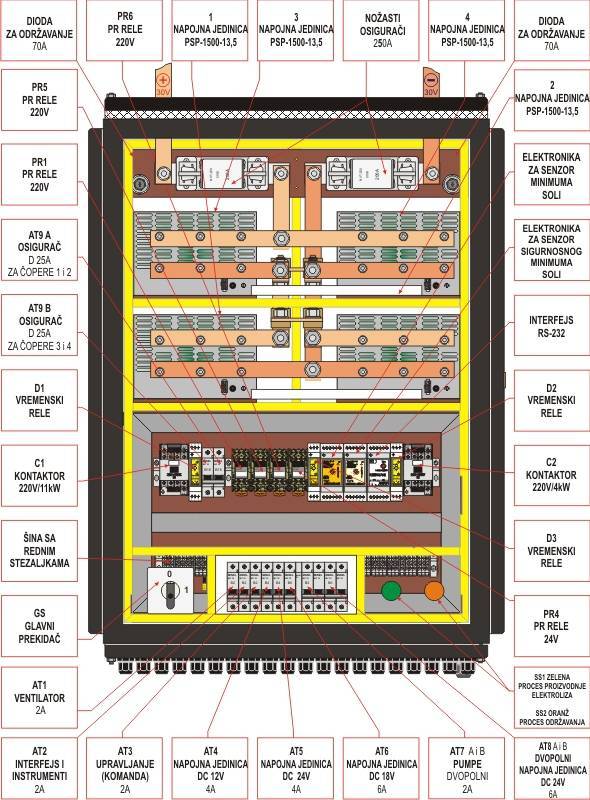

Power supply OEH (pcs):

2

Ventilation system – Fan TD-160/100N (pcs):

4

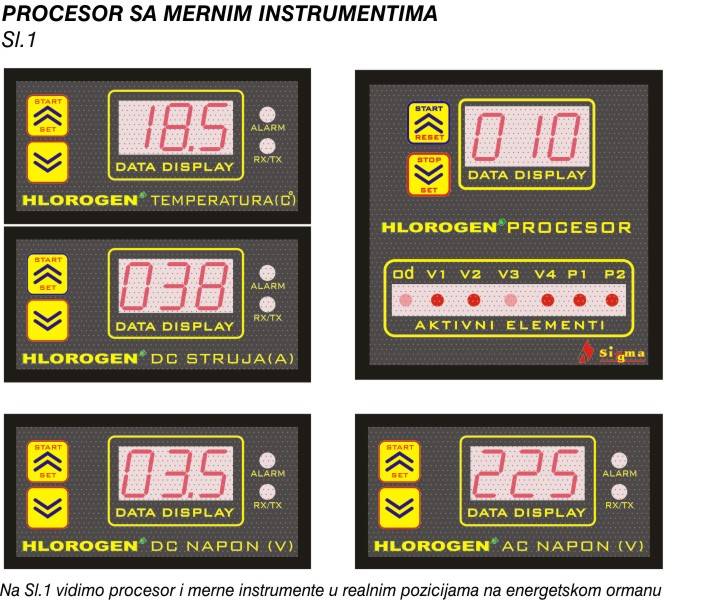

Microprocessor control – Hlorogen PLC (pcs):

4

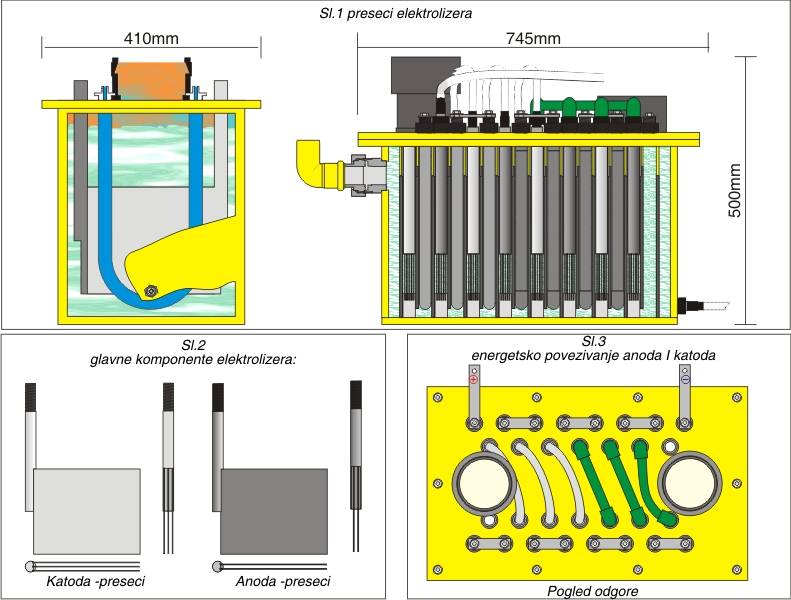

Electrolyzer Model E1000 – 4 pieces

anodes

cathodes

capacity equv. Cl2 (kg/h)

capacity equv. Cl2 (kg/day

pcs.

dim.(mm)

material

conn.

pcs.

dim.(mm)

material

conn.

1

24

16

200 x 250 x 2

Titanum

serial

24

200 x 250 x 2

Hastelloy

serial

Input electrolyte NaCl (gr/l)

Total electrolyte flow (l/h)

Conversion index (kg NaCl/1kg Cl2)

Current density (mA/cm²)

Input water temperature (˚C)

Allowed water hardness (mg/l CaCO3)

30

100

2,8 – 3

100

5 – 20

17

Working DC voltage (V)

Optimal DC current (A)

Switching power supply type

Allowed AC voltage (V)

Max. DC current (A)

Optimal power consumption (kWh)

27

180

PSP-1500-13,5

170 – 240

20

5

Produced solution concentration (%)

Optimal electrolyte temperature (˚C)

Salt consumption (kg/day)

Salt consumption (kg/month)

*Maximal water flow with keeping residual at  0,5 mg/l which can be disinfect (l/sec)

0,9 – 1

30

72

1728

556



Operation Basics

Hlorogen H4000 – Operation Basics

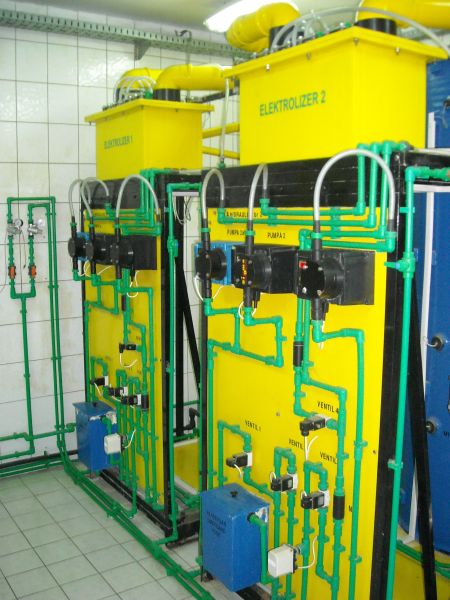

Water from the pipeline is filling water softener (4), calcium and magnesium ions are removed, and on the outlet of the softened water is obtained. Dosing pump (6) is transferring this water to the electrolyser where it is mixed with sodium chloride solution transferred from tank (3) by means of another dosing pump ( tank 3 contains saturated sodium chloride solution). Electrochemical reaction which results in conversion of sodium chloride into sodium hypochlorite is taking place in the electrolyser cell energized by direct electric current from energetic assembly (35) of the Hlorogen device Hypochlorite solution is stored in the tank (2). Hydrogen generated by conversion reaction is let in to atmosphere by means of ventilating system (28). Optimal hypochlorite production is achieved using system automatic arrangement (36). Sodium hypochlorite solution is injected by dosing membrane pumps (38) into pipeline with water to be disinfected. Residual chlorine analyzer (39) connected into regulation circuit with dosing pump keeps the concentration of residual chlorine in the water on the predetermined level. This is providing continuous production of disinfecting agent, automatic process control and automatic dosing and residual chlorine control.

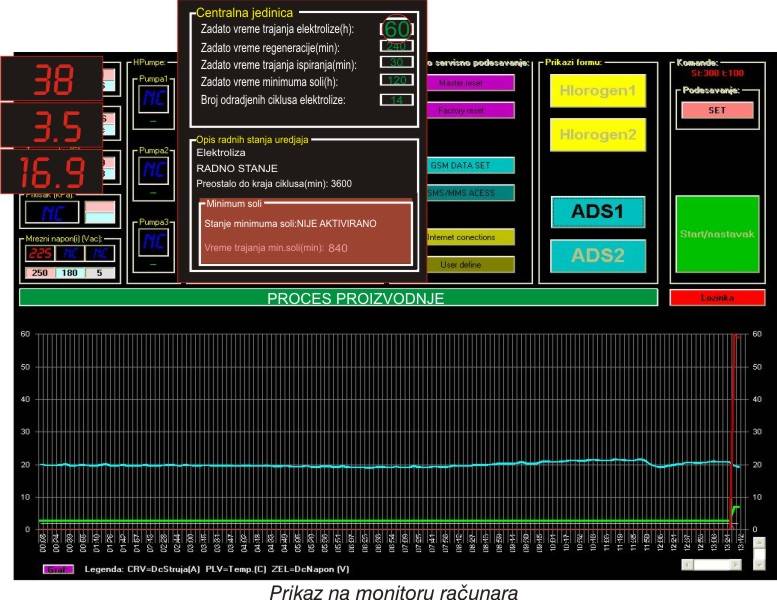

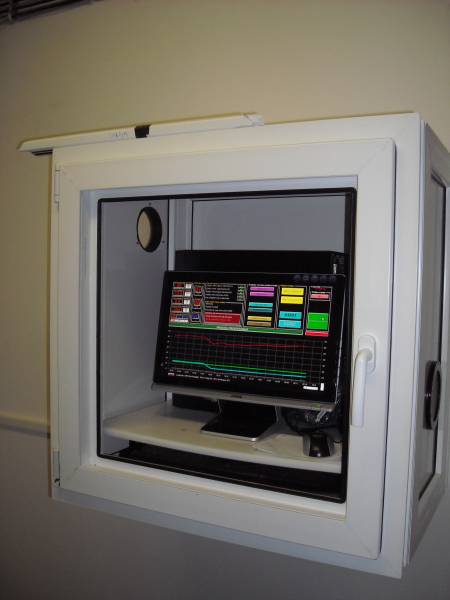

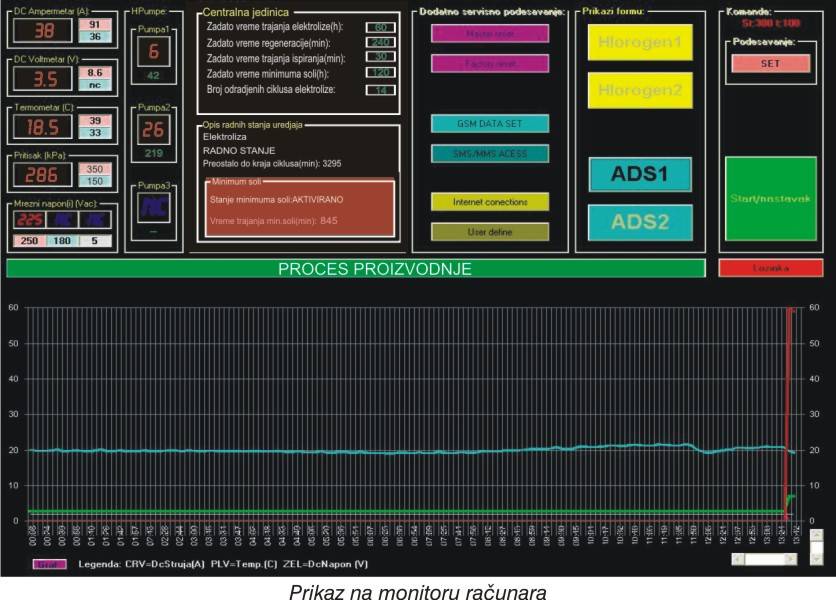

Full system operation can be monitored through PC (37).

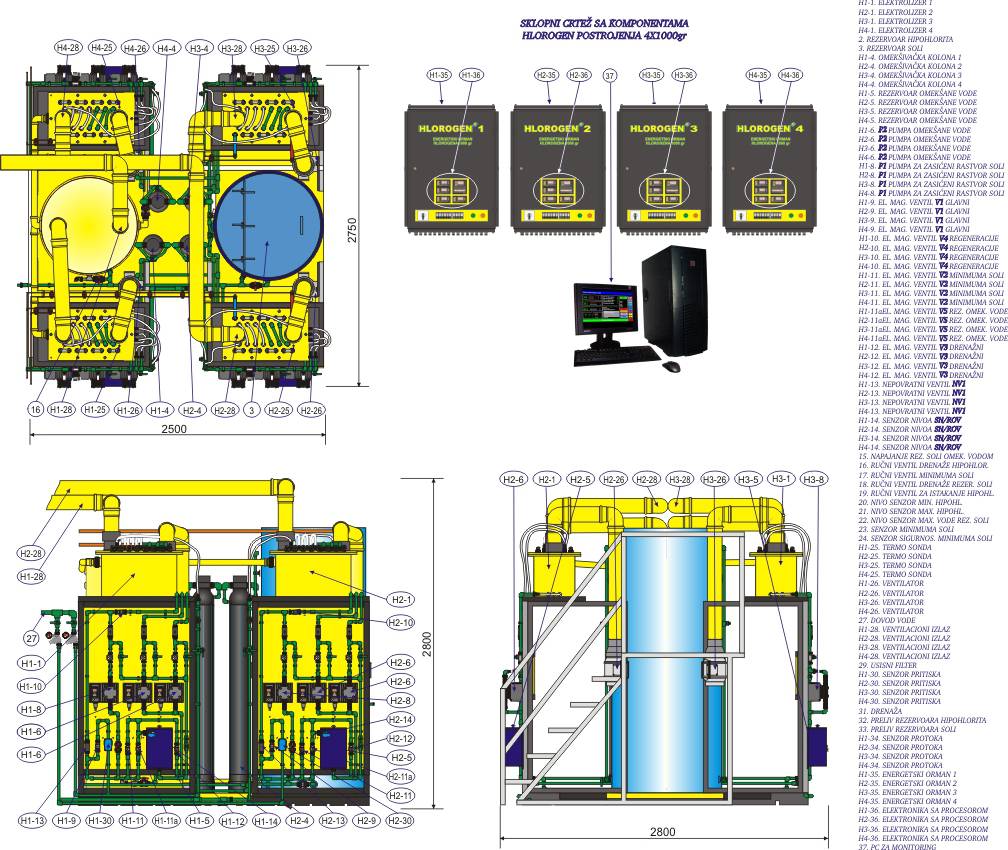

TECHNOLOGICAL SCHEME OF HLOROGEN PLANT

HLOROGEN_tehnoloska_sema



Download
