Hlorogen Container Chlorination Station KHS1

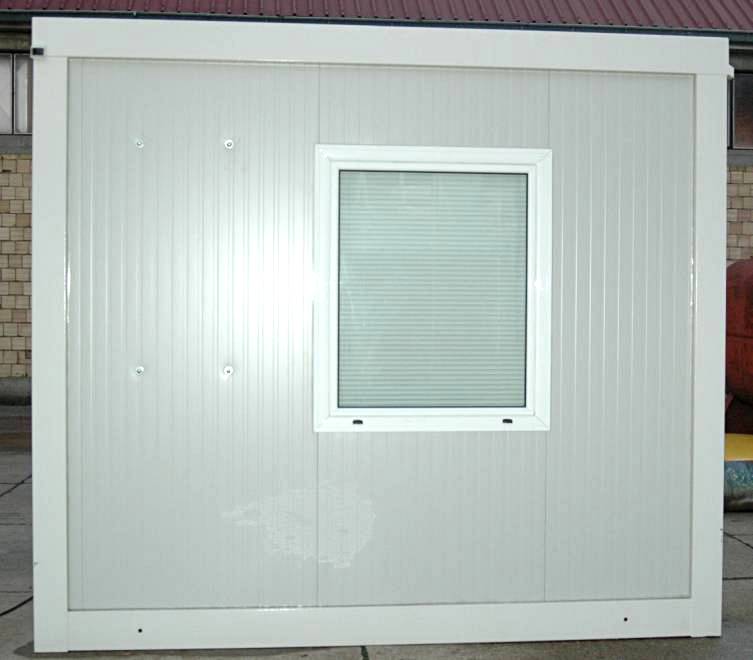

kontejnerska_stanica150

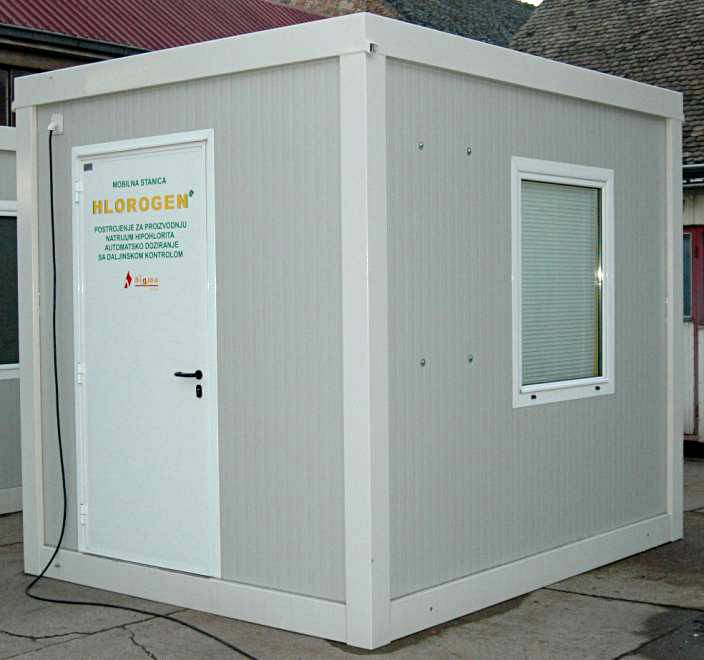

Hlorogen container on-site electrolytic system is the optimal solution when there is no adequate space to accommodate equipment for the disinfection of drinking water, as well as in the case when it is needed to place equipment for chlorination to a temporary location.
It consists of a storage container in which is the complete technological equipment installed, and as such is delivered to the buyer.
All the necessary equipment for remote monitoring and control is installed; therefore it can operate without a human crew. It is fast, reliable, efficient and cheap solution.



Characteristics of the system

Hlorogen Container Chlorination Station KHS1 – Characteristics of the system
KHS1 Container Station consists of : HLOROGEN H50 device, ADS – Automatic dosing system, PC for acquisition of sysstem data and remote control and managment by GSM or GPRS communication.
Hlorogen Container Chlorination Stations KHS1 capacity is 0,050 kg / h or 1,2 kg / day of equivalent chlorine.
Since no gaseous chlorine is present, water chlorination is absolutely safe due to system design. For production of sodium hypochlorite solution all that is needed is  common salt,  softened  water and electric energy. Production expenses are up to two times lower compared  to gaseous chlorine disinfection, or commercial sodium hypochlorite.

System is easy to use, demands only minimal maintenance and it is fully automated. Exploitation period is minimum 20 years.

E50 electrolyzers capacity to produce 50 g / h, 1.2 kg / day is sufficient to disinfect the water with flow of 28 L / s in order to maintain the 0.5 mg/l residual prescribed by law.

The maximum water flow that can be disinfected with Hlorogen H50, depending on chlorine needs and desired residuals



Chlorine need (mg/l)

Desired chlorine residual (mg/l)

Chlorine consumption (g/min)

NaOCl consumption (ml/min)

Chlorine consumption (g/h)

NaOCl consumption (l/h)

Maximal water flow (l/s)

0

0,3

0,83

83

49,7

4,97

46

0

0,4

0,84

84

50

5

35

0

0,5

0,84

84

50

5

28

0,1

0,5

0,83

83

49,7

4,97

23

0,2

0,5

0,84

84

50

5

20

0,3

0,5

0,82

82

49

4,9

17

0,4

0,5

0,81

81

48,6

4,86

15

0,5

0,5

0,84

84

50

5

14

0,6

0,5

0,79

79

47,5

4,75

12

0,7

0,5

0,79

79

47,5

4,75

11

0,8

0,5

0,78

78

46,8

4,68

10

0,9

0,5

0,84

84

50

5

10

1

0,5

0,81

81

48,6

4,86

9



Technical Data

This content is for our users only. Register here. If you already have an account, you can log in here.


Operation Basics

 Hlorogen Container Chlorination Station KHS1 – Operation Basics

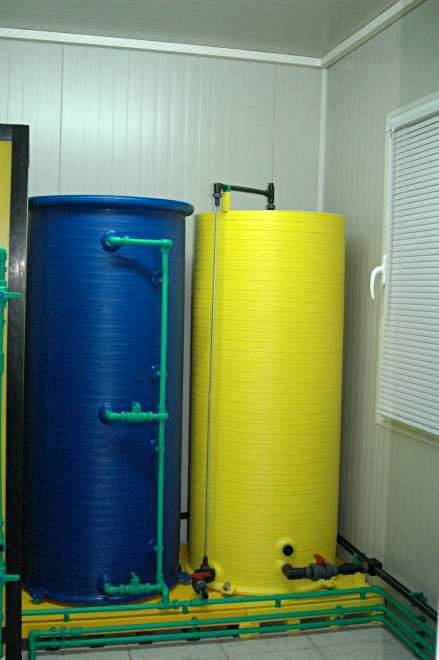

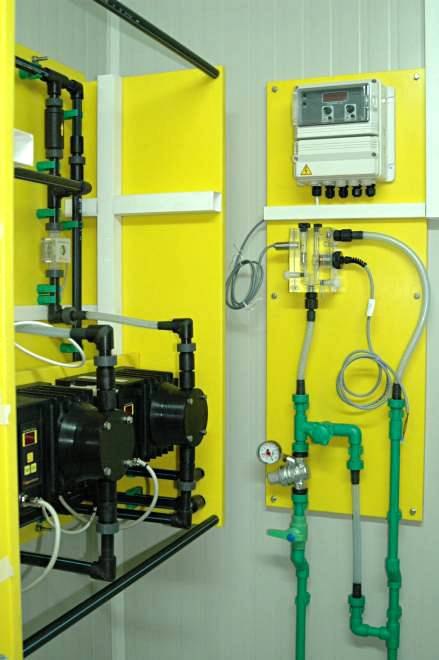

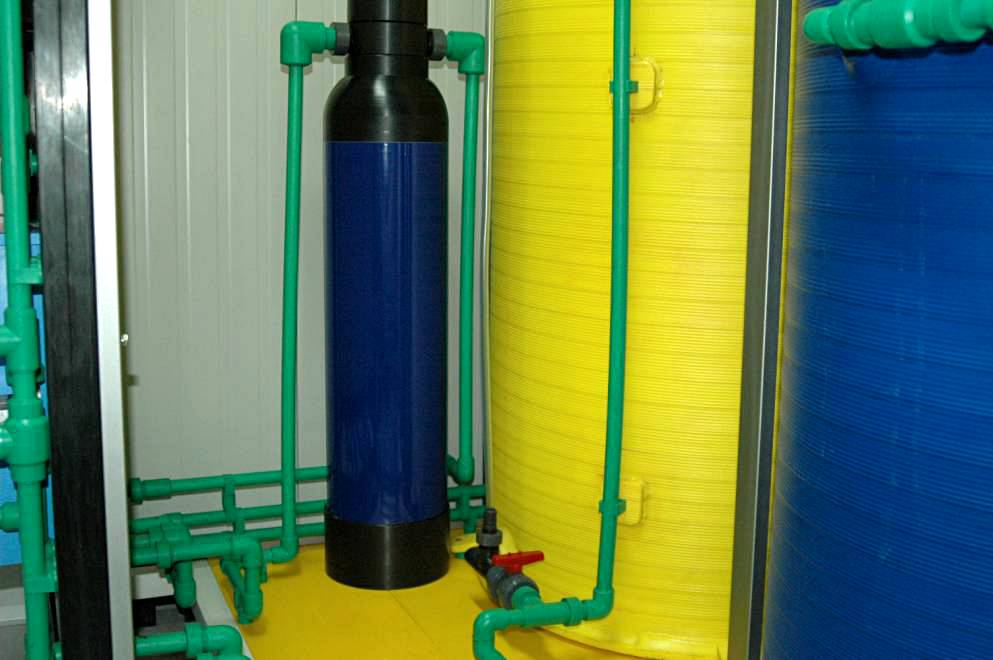

Water from the pipeline is filling water softener (4), calcium and magnesium ions are removed, and on the outlet of the softened water is obtained. Dosing pump (6) is transferring this water to the electrolyser where it is mixed with sodium chloride solution transferred from tank (3) by means of another dosing pump ( tank 3 contains saturated sodium chloride solution). Electrochemical reaction which results in conversion of sodium chloride into sodium hypochlorite is taking place in the electrolyser cell energized by direct electric current from energetic assembly (35) of the Hlorogen device Hypochlorite solution is stored in the tank (2). Hydrogen generated by conversion reaction is let in to atmosphere by means of ventilating system (28). Optimal hypochlorite production is achieved using system automatic arrangement (36). Sodium hypochlorite solution is injected by dosing membrane pumps (38) into pipeline with water to be disinfected. Residual chlorine analyzer (39) connected into regulation circuit with dosing pump keeps the concentration of residual chlorine in the water on the predetermined level. This is providing continuous production of disinfecting agent, automatic process control and automatic dosing and residual chlorine control.

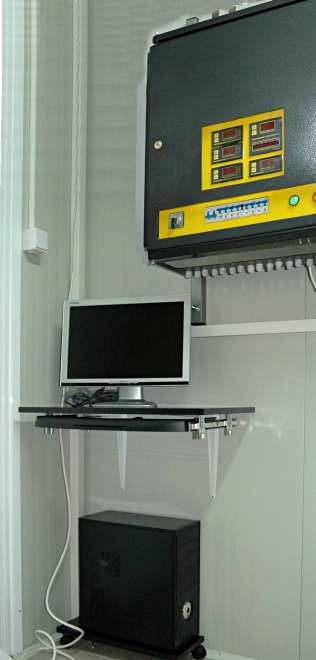

Full system operation can be monitored through PC (37).

TECHNOLOGICAL SCHEME HLOROGEN PLANT

HLOROGEN_tehnoloska_sema



Download

This content is for our users only. Register here. If you already have an account, you can log in here.


Gallery

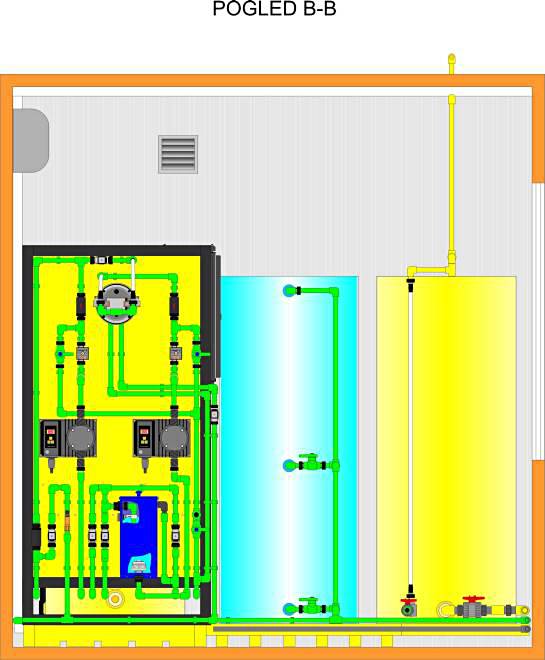

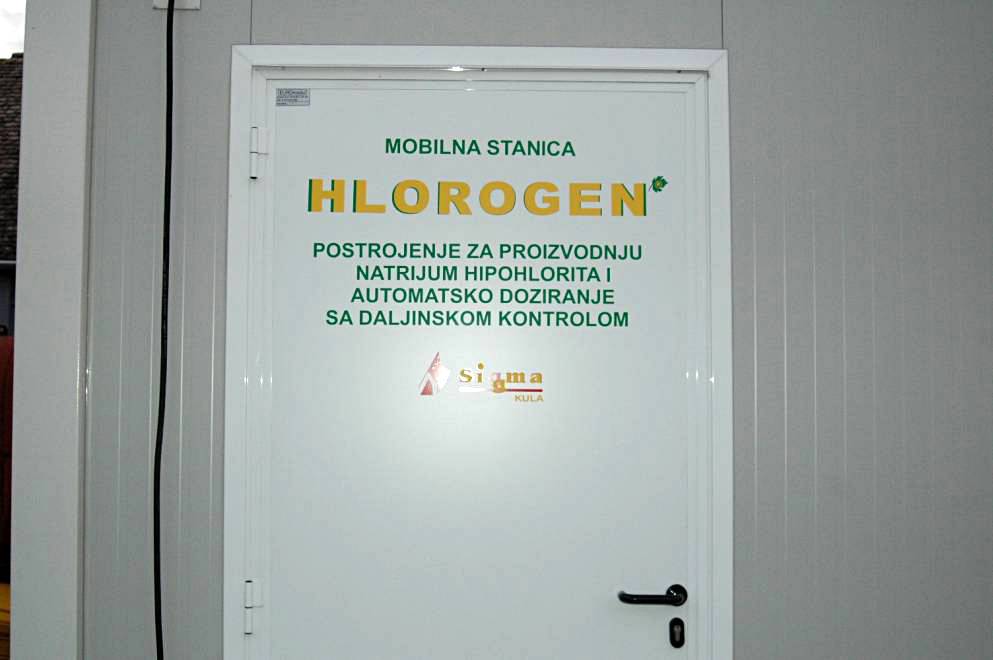

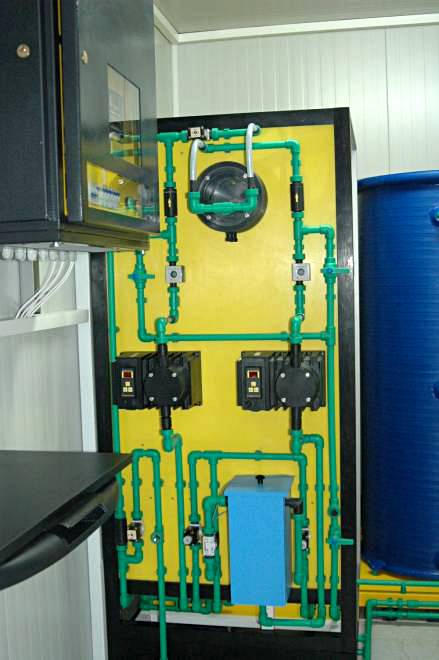

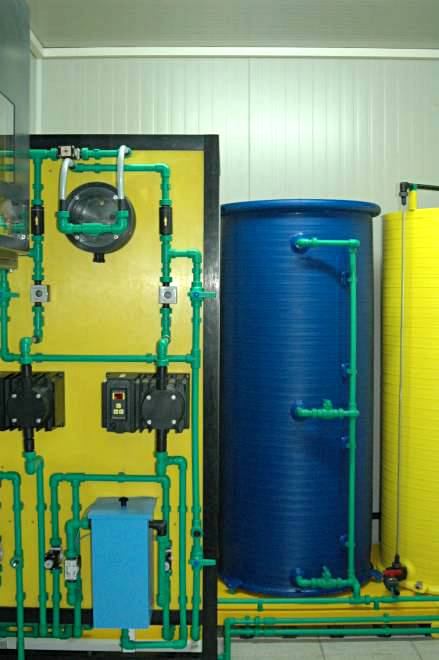

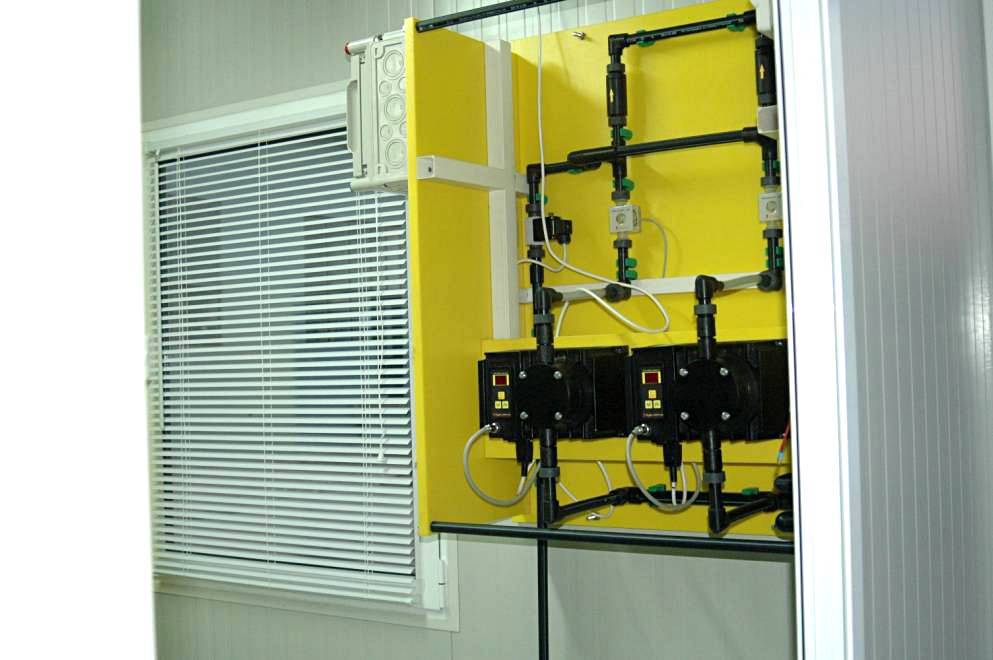

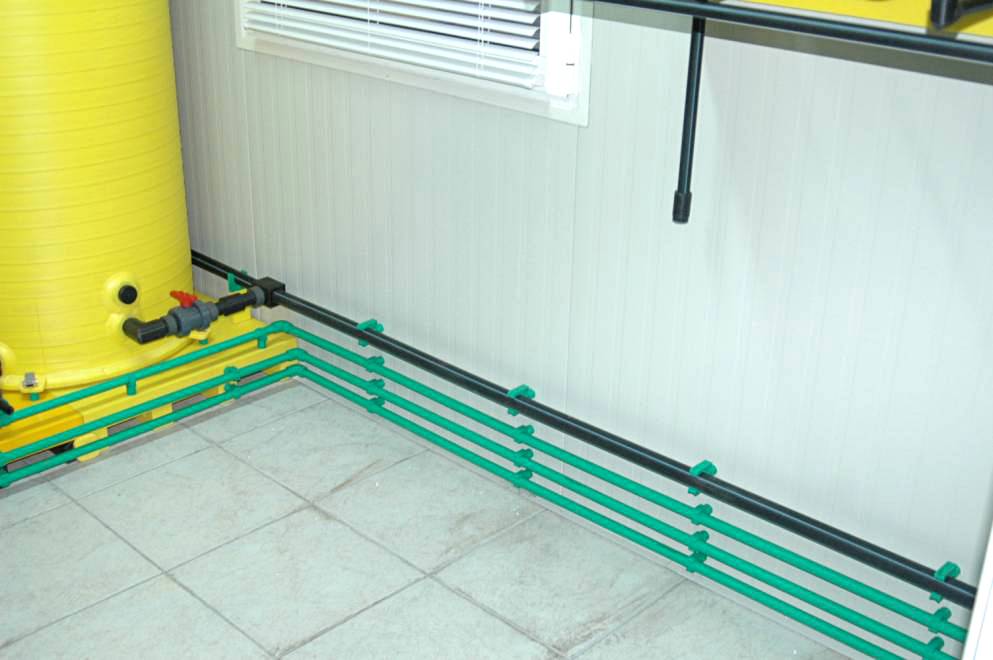

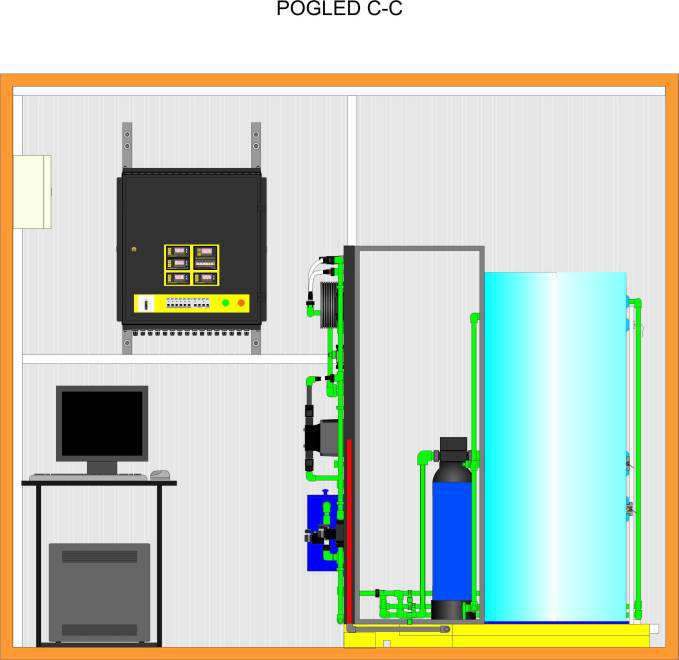

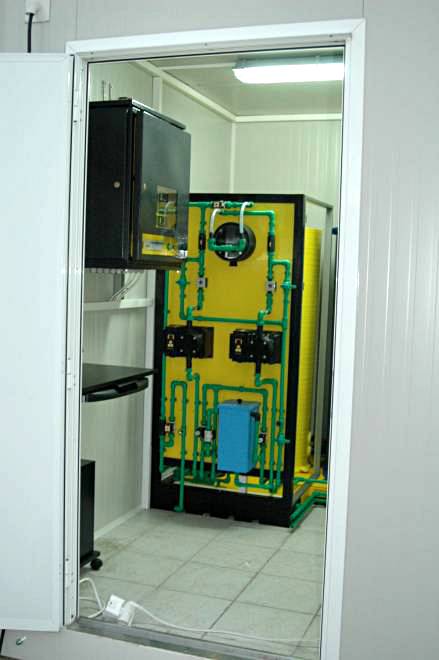

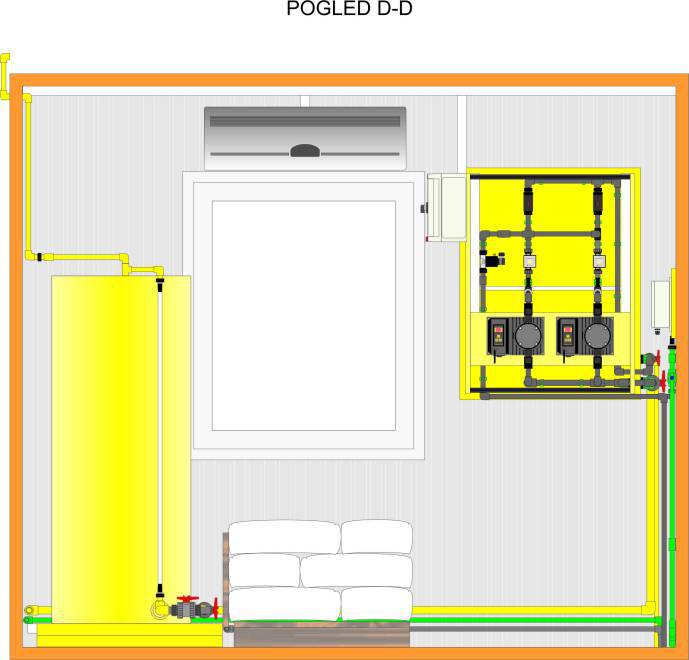

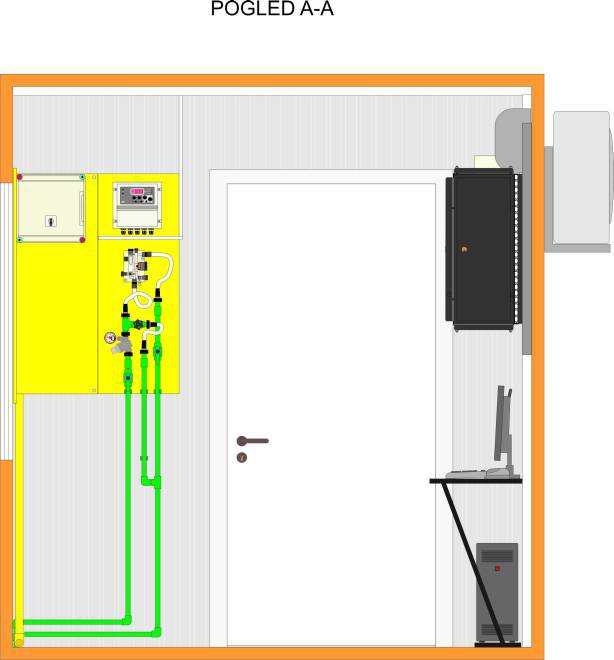

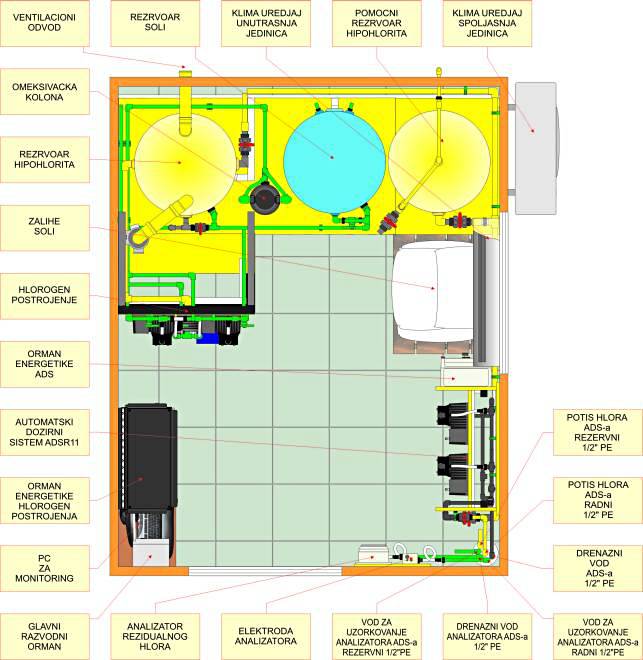

Hlorogen Container Chlorination Station KHS1 – drawings and photographs
